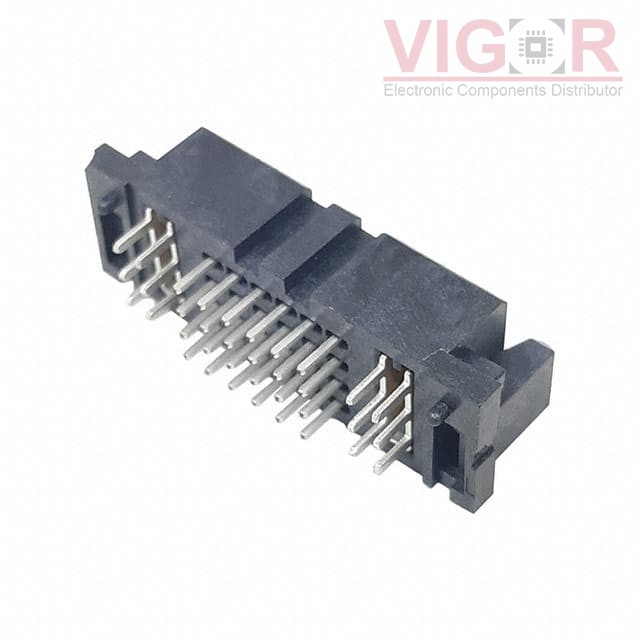

MPSC-01-24-01-7.70-01-L-V

MPSC-01-24-01-7.70-01-L-V

Image is for reference,
please contact us to get the real picture

Part No :

MPSC-01-24-01-7.70-01-L-V

Manufacturer
Samtec, Inc.
Description
CONN RCPT 26POS GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
MPSC-01-24-01-7.70-01-L-V PDF
Availability
103 pieces
Unit Price
$6.91000

Current price of MPSC-01-24-01-7.70-01-L-V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MPSC-01-24-01-7.70-01-L-V Specifications
Type Description
Series:PowerStrip™ 30 MPSC
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Board
Number of Positions:26 (24 + 2 Power)
Number of Positions Loaded:All
Pitch - Mating:-
Number of Rows:4
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.298" (7.57mm)
Contact Length - Post:0.107" (2.71mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SSM-104-S-DH-TR

SSM-104-S-DH-TR

CONN RCPT 8POS 0.1 GOLD SMD R/A
HOT 853-83-048-30-002101

853-83-048-30-002101

CONN SOCKET 48POS 0.05 GOLD SMD

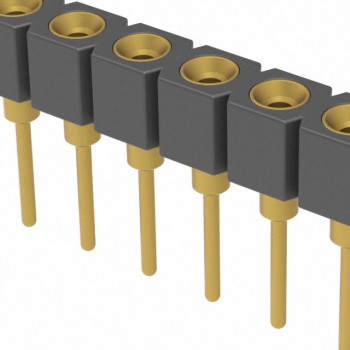

HOT 311-11-162-41-001000
