5-535542-6

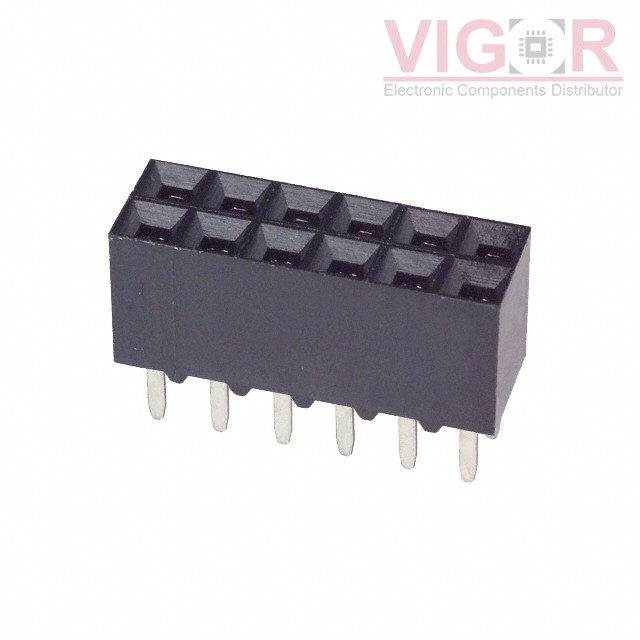

Image is for reference,
please contact us to get the real picture

Part No :: 5-535542-6

Manufacturer: TE Connectivity AMP Connectors

Description: CONN RCPT 12POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: 5-535542-6 PDF

Availability: 0 pieces

Unit Price: ~~$1.51200~~

Current price of 5-535542-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5-535542-6 Specifications

Type	Description
Series:	AMPMODU Mod IV
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle, Bottom or Top Entry
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Black
Insulation Height:	0.265" (6.73mm)
Contact Length - Post:	0.130" (3.30mm)
Operating Temperature:	-65°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	2A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
