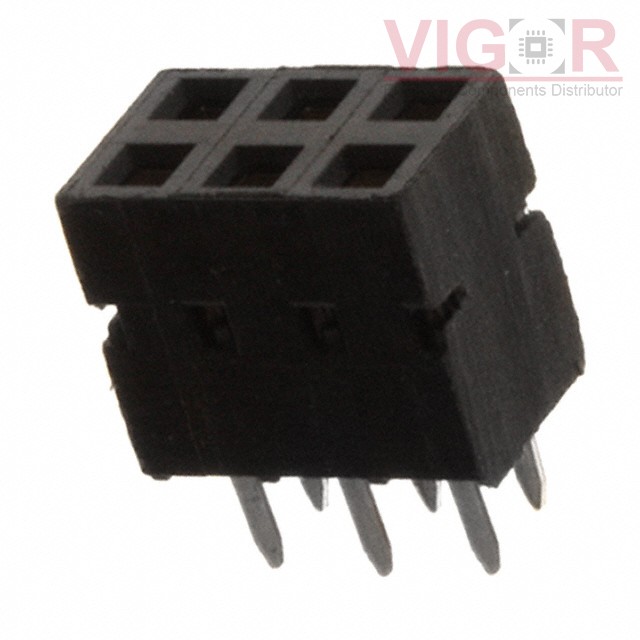

Current price of 68683-303LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | Dubox™ |
Package: | Tube |
Part Status: | Active |
Connector Type: | Receptacle |
Contact Type: | Female Socket |
Style: | Board to Board |
Number of Positions: | 6 |
Number of Positions Loaded: | All |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
Insulation Color: | Black |
Insulation Height: | 0.276" (7.00mm) |
Contact Length - Post: | 0.115" (2.92mm) |
Operating Temperature: | -65°C ~ 125°C |
Material Flammability Rating: | UL94 V-0 |
Contact Finish - Post: | Tin |
Mated Stacking Heights: | - |
Ingress Protection: | - |
Features: | - |
Current Rating (Amps): | - |
Voltage Rating: | 1000V |
