690367292476

690367292476

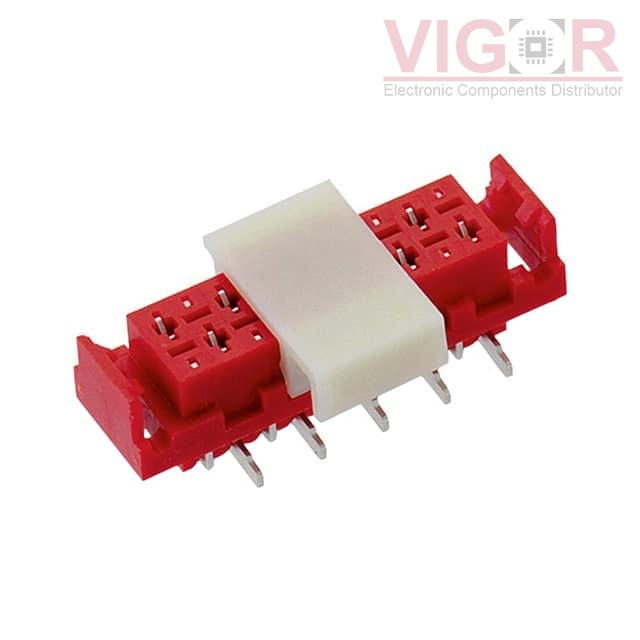

Image is for reference,
please contact us to get the real picture

Part No :

690367292476

Manufacturer
Würth Elektronik Midcom
Description
WR-MM FEMALE SMT CONNECTOR WITH
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
690367292476 PDF
Availability
1600 pieces
Unit Price
$2.60000

Current price of 690367292476 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

690367292476 Specifications
Type Description
Series:WR-MM
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Board or Cable
Number of Positions:24
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Insulation Color:Red
Insulation Height:0.207" (5.25mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place
Current Rating (Amps):1.5A per Contact
Voltage Rating:100VAC
