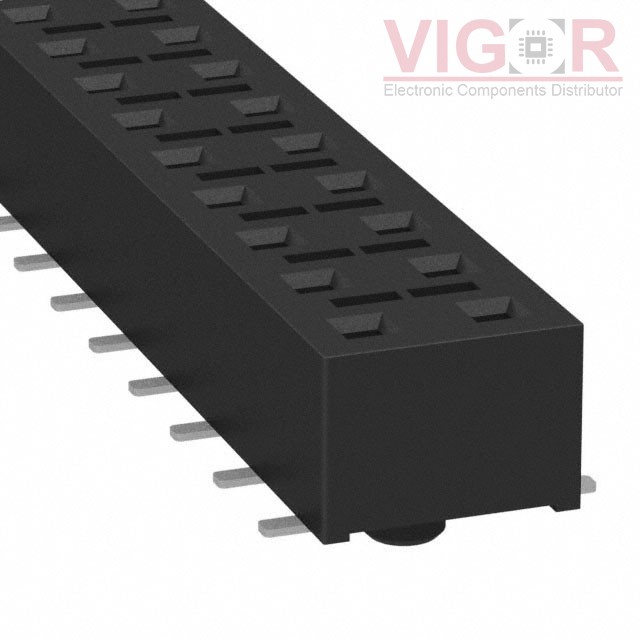

HLE-109-02-L-DV-BE-A

HLE-109-02-L-DV-BE-A

Image is for reference,
please contact us to get the real picture

Part No :

HLE-109-02-L-DV-BE-A

Manufacturer
Samtec, Inc.
Description
CONN RCPT 18POS 0.1 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
HLE-109-02-L-DV-BE-A PDF
Availability
0 pieces
Unit Price
$5.28000

Current price of HLE-109-02-L-DV-BE-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HLE-109-02-L-DV-BE-A Specifications
Type Description
Series:HLE
Package:Tube
Part Status:Active
Connector Type:Receptacle, Bottom Entry
Contact Type:Female Socket
Style:Board to Board
Number of Positions:18
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.144" (3.66mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):4.1A per Contact
Voltage Rating:400VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 835-47-030-10-001000

835-47-030-10-001000

CONN RCPT 30POS 0.1 GOLD PCB

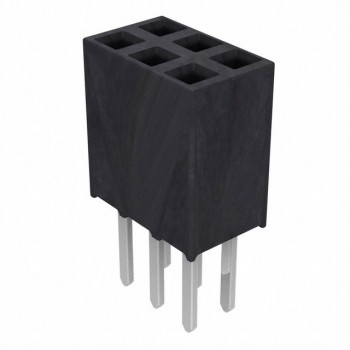

HOT SSW-103-02-S-D

SSW-103-02-S-D

CONN RCPT .100" 6POS DUAL GOLD

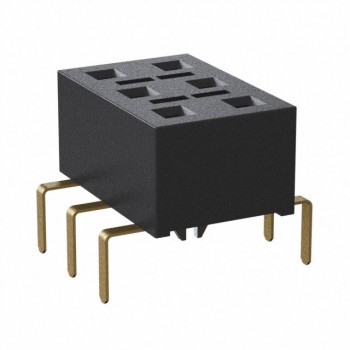

HOT HLE-103-02-G-DV-PE-BE-LC
