XH5B-6815-5N

XH5B-6815-5N

Image is for reference,
please contact us to get the real picture

Part No :

XH5B-6815-5N

Manufacturer
Omron Electronics Components
Description

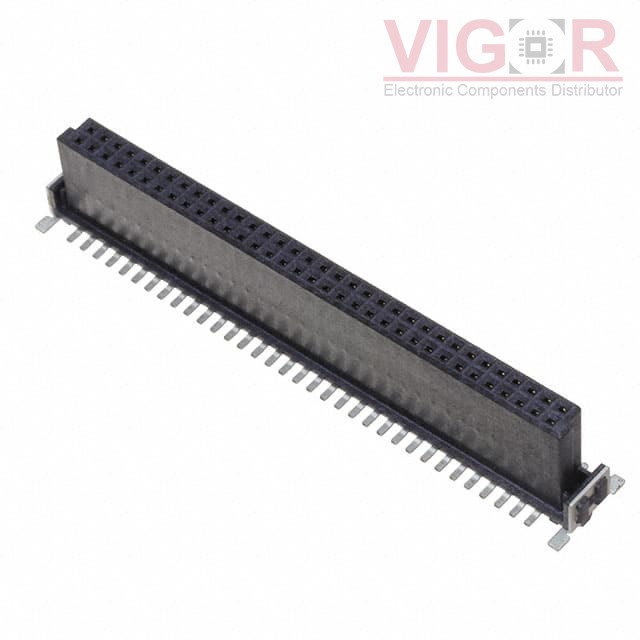

SOCKET, STRAIGHT, SMT PINS
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
XH5B-6815-5N PDF
Availability
10 pieces
Unit Price
$9.10000

Current price of XH5B-6815-5N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XH5B-6815-5N Specifications
Type Description
Series:XH5-N
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Socket
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:68
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.356" (9.05mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:10.8mm, 12.3mm
Ingress Protection:-
Features:Board Guide, Pick and Place, Solder Retention
Current Rating (Amps):1A
Voltage Rating:100VAC
