2248-A2X05G00DNT-M

2248-A2X05G00DNT-M

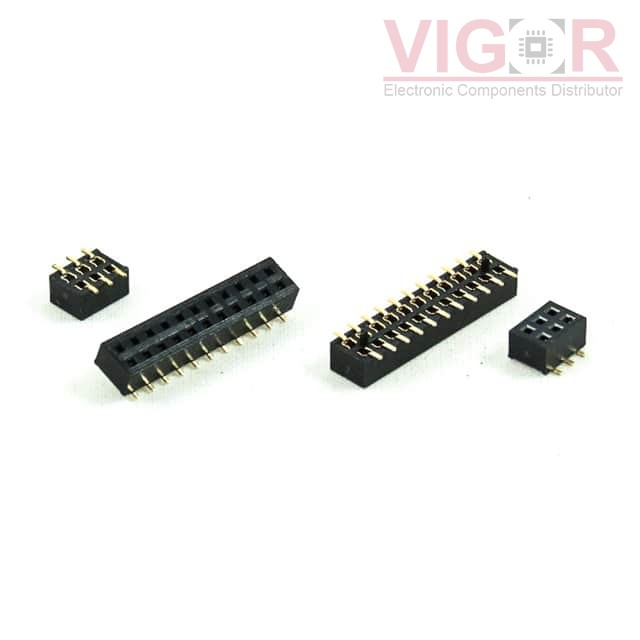

Image is for reference,
please contact us to get the real picture

Part No :

2248-A2X05G00DNT-M

Manufacturer
Oupiin
Description
PCB SOCKET, DOUBLE ROW, 10 PIN,
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
2248-A2X05G00DNT-M PDF
Availability
2100 pieces
Unit Price
$1.19000

Current price of 2248-A2X05G00DNT-M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2248-A2X05G00DNT-M Specifications
Type Description
Series:2248
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Socket
Contact Type:Female Socket
Style:Board to Board
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Insulation Color:-
Insulation Height:0.085" (2.15mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide, Pick and Place
Current Rating (Amps):1A
Voltage Rating:-
