M22-6360542

M22-6360542

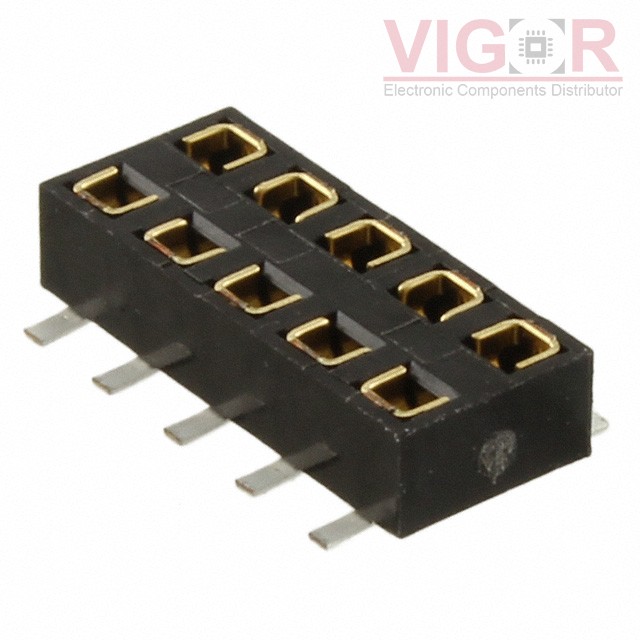

Image is for reference,
please contact us to get the real picture

Part No :

M22-6360542

Manufacturer
Harwin
Description
CONN RCPT 10POS 0.079 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
M22-6360542 PDF
Availability
30 pieces
Unit Price
$2.57000

Current price of M22-6360542 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M22-6360542 Specifications
Type Description
Series:M22
Package:Bulk
Part Status:Active
Connector Type:Receptacle, Bottom or Top Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Insulation Color:Black
Insulation Height:0.079" (2.00mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:3.6mm, 4.35mm, 4.6mm
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):2A
Voltage Rating:-
