Current price of M300-FV1034500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | M300 |
Package: | Tube |
Part Status: | Active |

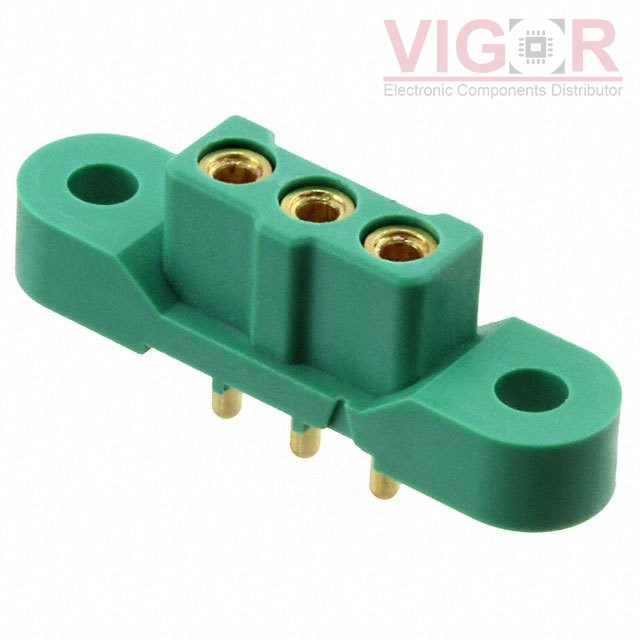

Connector Type: | Receptacle |
Contact Type: | Female Socket, Power |
Style: | Board to Board or Cable |
Number of Positions: | 3 |
Number of Positions Loaded: | All |
Pitch - Mating: | 0.118" (3.00mm) |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | - |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 12.0µin (0.30µm) |
Insulation Color: | Green |
Insulation Height: | 0.256" (6.50mm) |
Contact Length - Post: | 0.126" (3.20mm) |
Operating Temperature: | -65°C ~ 175°C |
Material Flammability Rating: | UL94 V-0 |
Contact Finish - Post: | - |
Mated Stacking Heights: | 8.9mm |
Ingress Protection: | - |
Features: | Mating Flange |
Current Rating (Amps): | - |
Voltage Rating: | 600V |
