AR 16-HZL/01-TT

AR 16-HZL/01-TT

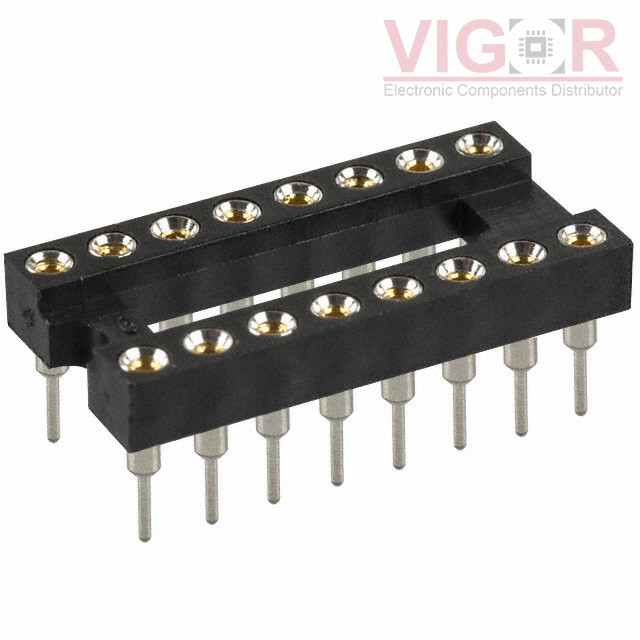

Image is for reference,
please contact us to get the real picture

Part No :

AR 16-HZL/01-TT

Manufacturer
ASSMANN WSW Components
Description
CONN IC DIP SOCKET 16POS GOLD
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
AR 16-HZL/01-TT PDF
Availability
19871 pieces
Unit Price
$0.99000

Current price of AR 16-HZL/01-TT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AR 16-HZL/01-TT Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Type:DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid):16 (2 x 8)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Material - Mating:Beryllium Copper
Mounting Type:Through Hole
Features:Open Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Tin
Contact Finish Thickness - Post:200.0µin (5.08µm)
Contact Material - Post:Beryllium Copper
Housing Material:Thermoplastic, Polyester
Operating Temperature:-40°C ~ 105°C
