1-2199298-6

1-2199298-6

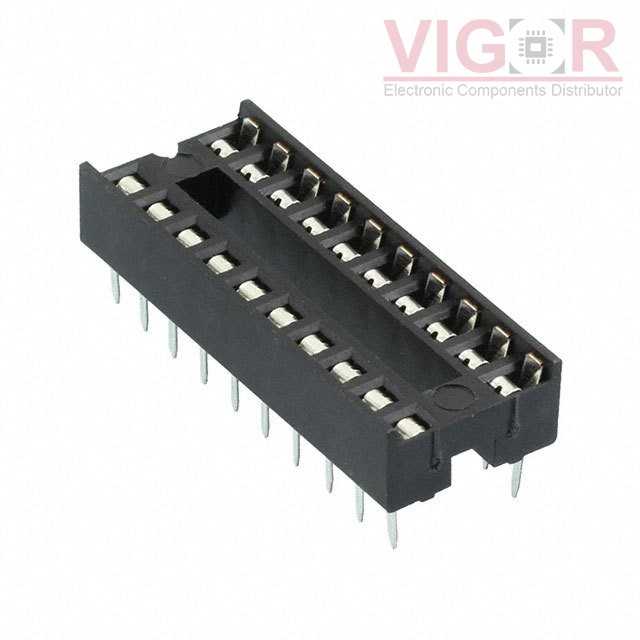

Image is for reference,
please contact us to get the real picture

Part No :

1-2199298-6

Manufacturer
TE Connectivity AMP Connectors
Description
CONN IC DIP SOCKET 20POS TIN
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
1-2199298-6 PDF
Availability
3080 pieces
Unit Price
$0.47000

Current price of 1-2199298-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-2199298-6 Specifications
Type Description
Series:Diplomate DL
Package:Tube
Part Status:Active
Type:DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid):20 (2 x 10)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Material - Mating:Phosphor Bronze
Mounting Type:Through Hole
Features:Open Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Tin
Contact Finish Thickness - Post:-
Contact Material - Post:Brass, Copper
Housing Material:Polybutylene Terephthalate (PBT), Thermoplastic, Glass Filled
Operating Temperature:-40°C ~ 105°C
