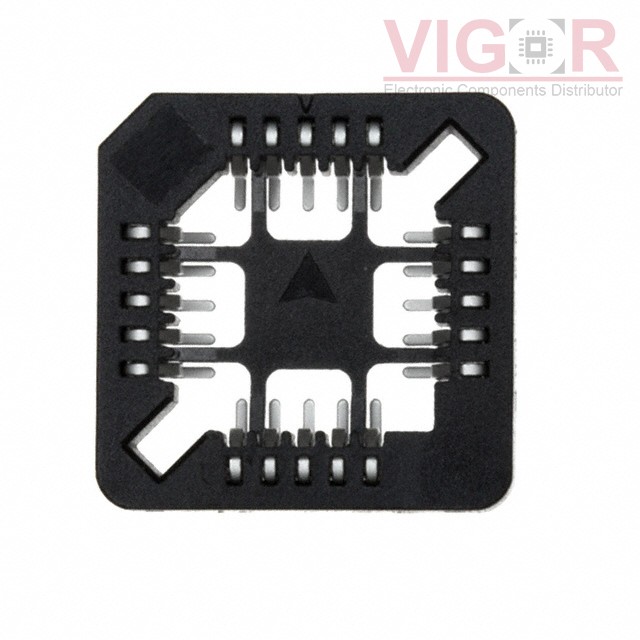

8420-21B1-RK-TP

8420-21B1-RK-TP

Image is for reference,
please contact us to get the real picture

Part No :

8420-21B1-RK-TP

Manufacturer
3M
Description
CONN SOCKET PLCC 20POS TIN
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
8420-21B1-RK-TP PDF
Availability
2670 pieces
Unit Price
$1.45000

Current price of 8420-21B1-RK-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8420-21B1-RK-TP Specifications
Type Description
Series:8400
Package:Tube
Part Status:Active
Type:PLCC
Number of Positions or Pins (Grid):20 (4 x 5)
Pitch - Mating:0.050" (1.27mm)
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:160.0µin (4.06µm)
Contact Material - Mating:Copper Alloy
Mounting Type:Surface Mount
Features:Closed Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Tin
Contact Finish Thickness - Post:160.0µin (4.06µm)
Contact Material - Post:Copper Alloy
Housing Material:Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:-40°C ~ 105°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 110-99-428-41-001000

110-99-428-41-001000

CONN IC DIP SOCKET 28POS TINLEAD
HOT 08-3518-00

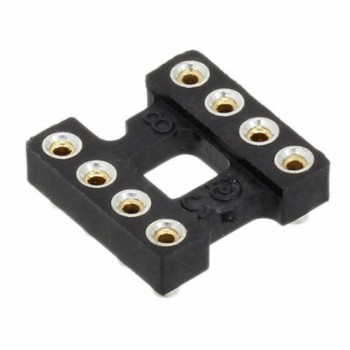

08-3518-00

CONN IC DIP SOCKET 8POS GOLD
HOT 116-87-422-41-007101

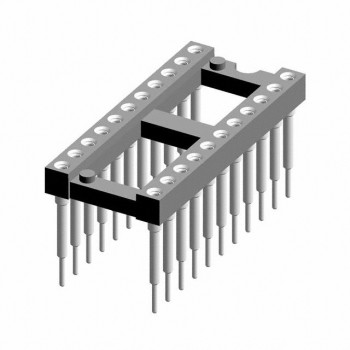

116-87-422-41-007101
