2-382714-1

2-382714-1

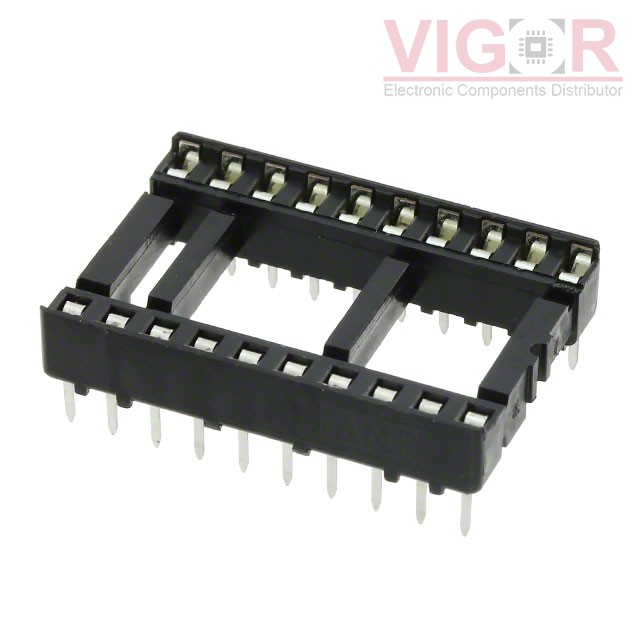

Image is for reference,
please contact us to get the real picture

Part No :

2-382714-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN IC DIP SOCKET 20POS TIN
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
2-382714-1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2-382714-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2-382714-1 Specifications
Type Description
Series:Diplomate DL
Package:Tube
Part Status:Obsolete
Type:DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid):20 (2 x 10)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Material - Mating:Beryllium Copper
Mounting Type:Through Hole
Features:Open Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Tin
Contact Finish Thickness - Post:-
Contact Material - Post:Beryllium Copper
Housing Material:Thermoplastic, Glass Filled
Operating Temperature:-55°C ~ 105°C
