A-CCS20-Z-SM

A-CCS20-Z-SM

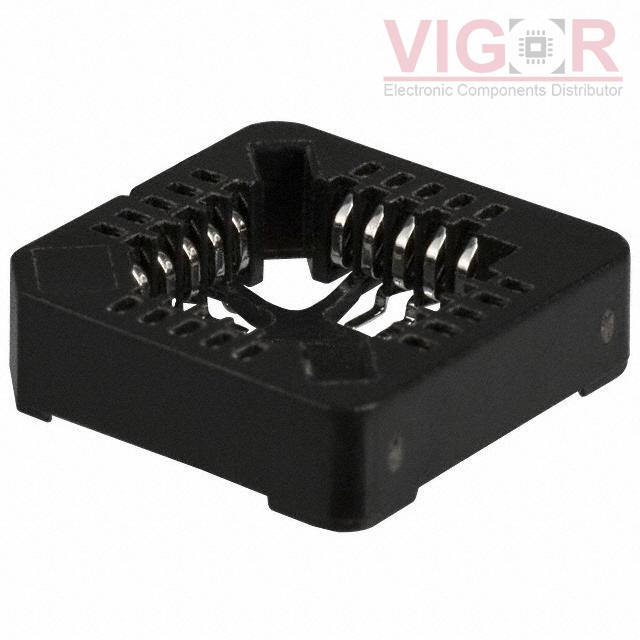

Image is for reference,
please contact us to get the real picture

Part No :

A-CCS20-Z-SM

Manufacturer
ASSMANN WSW Components
Description
CONN SOCKET PLCC 20POS TIN
Catalog
Sockets for ICs, Transistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
A-CCS20-Z-SM PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of A-CCS20-Z-SM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

A-CCS20-Z-SM Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Type:PLCC
Number of Positions or Pins (Grid):20 (4 x 5)
Pitch - Mating:0.050" (1.27mm)
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Material - Mating:Phosphor Bronze
Mounting Type:Surface Mount
Features:Closed Frame
Termination:Solder
Pitch - Post:0.050" (1.27mm)
Contact Finish - Post:Tin
Contact Finish Thickness - Post:150.0µin (3.81µm)
Contact Material - Post:Phosphor Bronze
Housing Material:Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:-55°C ~ 105°C
