1728060000

1728060000

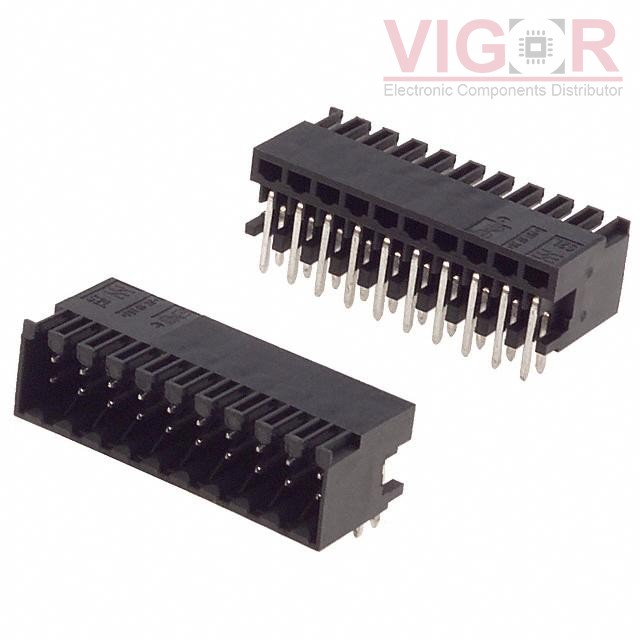

Image is for reference,
please contact us to get the real picture

Part No :

1728060000

Manufacturer
Weidmuller
Description
TERM BLOCK HDR 20POS 90DEG 3.5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
1728060000 PDF
Availability
1348 pieces
Unit Price
$8.67000

Current price of 1728060000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1728060000 Specifications
Type Description
Series:Omnimate S2L
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:20
Positions Per Level:10
Number of Levels:2
Pitch:0.138" (3.50mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:10A
Voltage - IEC:250 V
Current - UL:10 A
Voltage - UL:150 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-50°C ~ 100°C
Contact Mating Finish:Tin
Features:-
