ED130/5DS

ED130/5DS

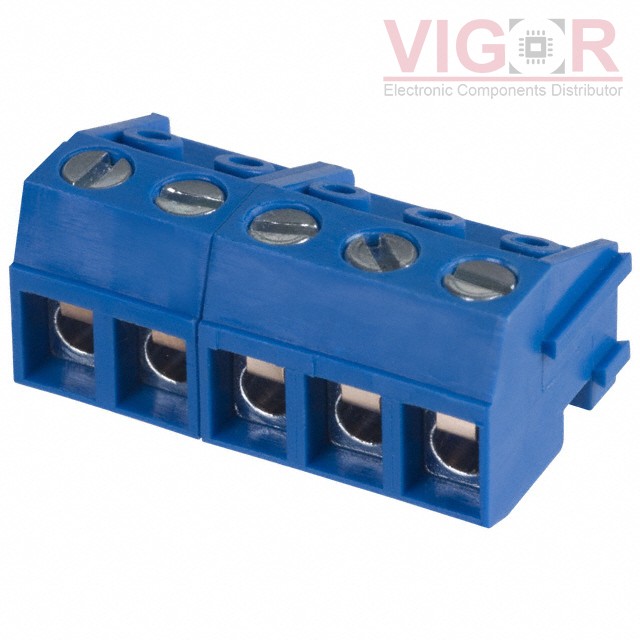

Image is for reference,
please contact us to get the real picture

Part No :

ED130/5DS

Manufacturer
On-Shore Technology, Inc.
Description
TERM BLOCK PLUG 5POS 90DEG 5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ED130/5DS PDF
Availability
31 pieces
Unit Price
$2.65000

Current price of ED130/5DS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ED130/5DS Specifications
Type Description
Series:ED130
Package:Bulk
Part Status:Active
Type:Plug for Unshrouded Header
Number of Positions:5
Positions Per Level:5
Number of Levels:1
Pitch:0.197" (5.00mm)
Header Orientation:-
Plug Wire Entry:90°
Termination Style:Screw
Mounting Type:Free Hanging (In-Line)
Current - IEC:-
Voltage - IEC:-
Current - UL:10 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:14-22 AWG
Wire Gauge or Range - mm²:1.5mm²
Color:Blue
Operating Temperature:-30°C ~ 105°C
Contact Mating Finish:-
Features:Interlocking (Side)
