2318136-3

2318136-3

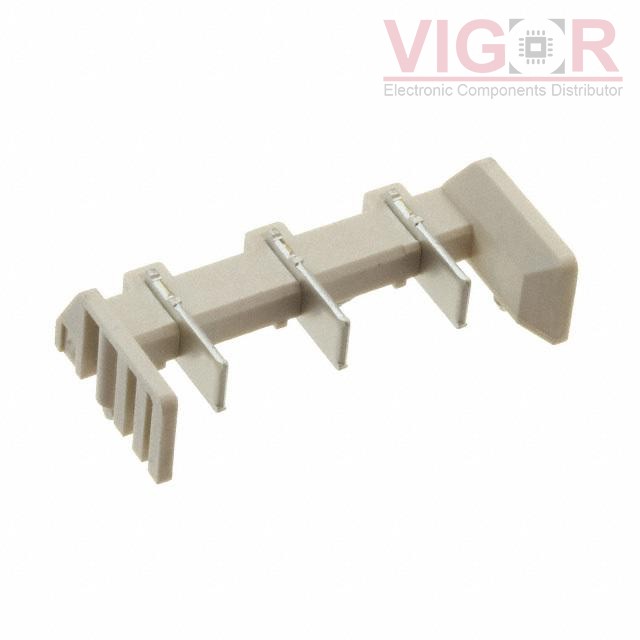

Image is for reference,
please contact us to get the real picture

Part No :

2318136-3

Manufacturer
TE Connectivity AMP Connectors
Description
WIREMATE 2-PIECE 8MM HDR ASSY, 3
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
2318136-3 PDF
Availability
1399 pieces
Unit Price
$1.30000

Current price of 2318136-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2318136-3 Specifications
Type Description
Series:WireMate, Buchanan
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Header, Blade Pins
Number of Positions:3
Positions Per Level:3
Number of Levels:1
Pitch:0.315" (8.00mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Surface Mount
Current - IEC:-
Voltage - IEC:-
Current - UL:-
Voltage - UL:250 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Natural
Operating Temperature:-40°C ~ 85°C
Contact Mating Finish:Tin
Features:Board Guide
