1780610000

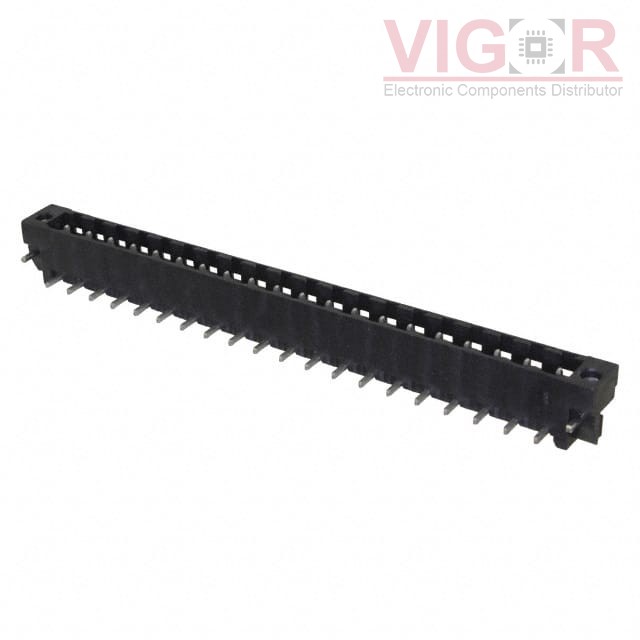

Image is for reference,
please contact us to get the real picture

Part No :: 1780610000

Manufacturer: Weidmuller

Description: TERM BLOCK HDR 20POS 5.08MM

Catalog: Terminal Blocks - Headers, Plugs and Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 1780610000 PDF

Availability: 60 pieces

Unit Price: ~~$8.67000~~

Current price of 1780610000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1780610000 Specifications

Type	Description
Series:	Omnimate SL
Package:	Bulk
Part Status:	Active
Type:	Header, Male Pins, Shrouded (4 Side)
Number of Positions:	20
Positions Per Level:	20
Number of Levels:	1
Pitch:	0.200" (5.08mm)
Header Orientation:	90°, Right Angle
Plug Wire Entry:	-
Termination Style:	Solder
Mounting Type:	Through Hole
Current - IEC:	27.5A
Voltage - IEC:	400 V
Current - UL:	18.5 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	-
Wire Gauge or Range - mm²:	-
Color:	Black
Operating Temperature:	-50°C ~ 100°C
Contact Mating Finish:	Tin
Features:	Mating Flange, Solder Retention
