XW4M-02D1-H1DS

XW4M-02D1-H1DS

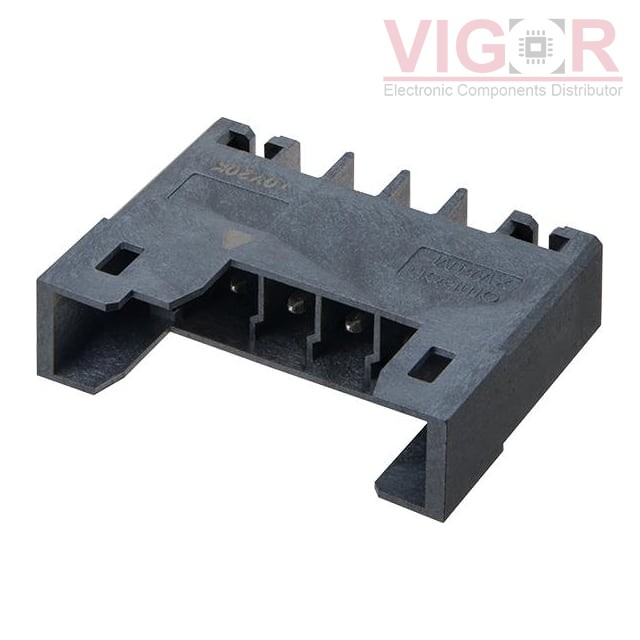

Image is for reference,
please contact us to get the real picture

Part No :

XW4M-02D1-H1DS

Manufacturer
Omron Electronics Components
Description
PLUG,SINGLE-ROW,RIGHT-ANGLE,TIN
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
XW4M-02D1-H1DS PDF
Availability
0 pieces
Unit Price
$8.33000

Current price of XW4M-02D1-H1DS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XW4M-02D1-H1DS Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:2
Positions Per Level:2
Number of Levels:1
Pitch:0.138" (3.50mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:8A
Voltage - IEC:160 A
Current - UL:8 V
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-40°C ~ 100°C
Contact Mating Finish:Tin
Features:Latches
