ED3000/7

ED3000/7

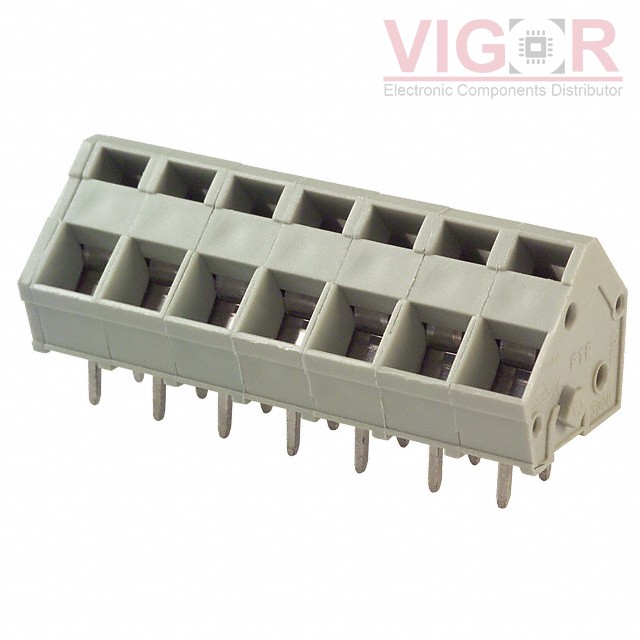

Image is for reference,
please contact us to get the real picture

Part No :

ED3000/7

Manufacturer
On-Shore Technology, Inc.
Description
TERM BLOCK 7POS 45DEG 5MM PCB
Catalog
Terminal Blocks - Wire to Board
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ED3000/7 PDF
Availability
0 pieces
Unit Price
$3.24000

Current price of ED3000/7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ED3000/7 Specifications
Type Description
Series:ED3000
Package:Bulk
Part Status:Active
Number of Levels:1
Positions Per Level:7
Pitch:0.197" (5.00mm)
Mating Orientation:45° (135°) Angle with Board
Current:16 A
Voltage:300 V
Wire Gauge:14-28 AWG
Mounting Type:Through Hole
Wire Termination:Screwless - Leg Spring, Push-In Spring
Features:Interlocking (Side)
Color:Gray, Slate
