Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 0145-0-15-15-30-27-04-0 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 145 |
Package: | Bulk |
Part Status: | Active |
Tail Type: | Standard Tail |
Termination: | Press-Fit |
Length - Overall: | 0.490" (12.45mm) |
Accepts Pin Diameter: | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
Accepts Square Pin Size: | - |
Pin Hole Diameter: | 0.043" (1.09mm) |
Mounting Hole Diameter: | 0.059" (1.50mm) |
Flange Diameter: | 0.072" (1.83mm) |
Tail Diameter: | 0.020" (0.51mm) |
Socket Depth: | 0.150" (3.81mm) |
Contact Material: | Beryllium Copper |
Contact Finish: | Gold |
Contact Finish Thickness: | 30.0µin (0.76µm) |
CAP TANT 4.7UF 20% 10V 0805

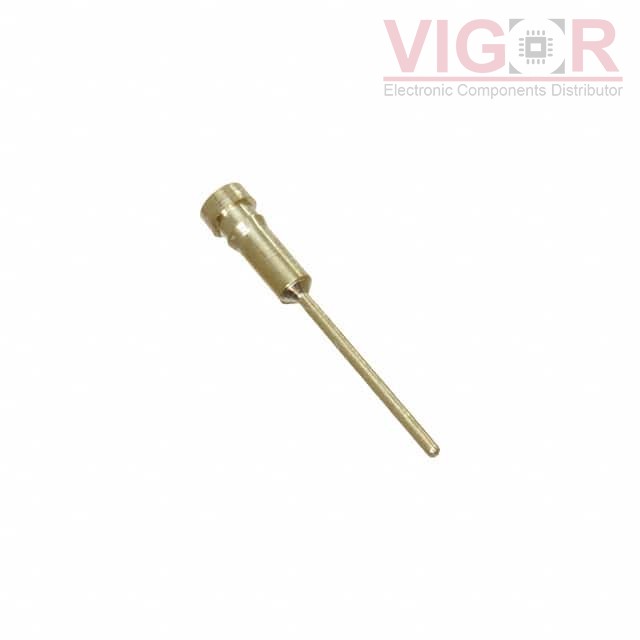

CONN PIN RCPT .015-.025 PRESSFIT
