5769-0-15-15-47-27-10-0

5769-0-15-15-47-27-10-0

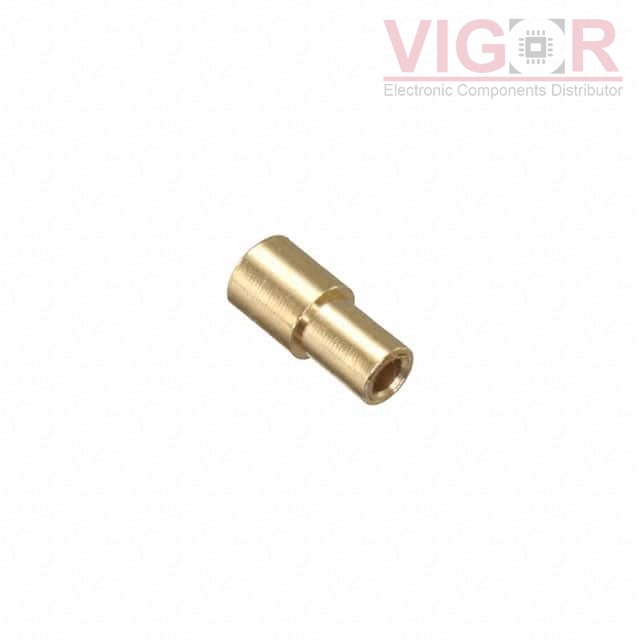

Image is for reference,
please contact us to get the real picture

Part No :

5769-0-15-15-47-27-10-0

Manufacturer
Mill-Max
Description
SOLDER MOUNT RECEPTALCE - SMT/TH
Catalog
Terminals - PC Pin Receptacles, Socket Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
5769-0-15-15-47-27-10-0 PDF
Availability
1000 pieces
Unit Price
$0.80000

Current price of 5769-0-15-15-47-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5769-0-15-15-47-27-10-0 Specifications
Type Description
Series:5769
Package:Bulk
Part Status:Active
Tail Type:No Tail
Termination:Surface Mount
Length - Overall:0.180" (4.57mm)
Accepts Pin Diameter:0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size:0.025" (0.64mm)
Pin Hole Diameter:0.051" (1.30mm)
Mounting Hole Diameter:0.058" (1.47mm)
Flange Diameter:-
Tail Diameter:-
Socket Depth:0.150" (3.81mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
