8225-0-15-15-10-27-10-0

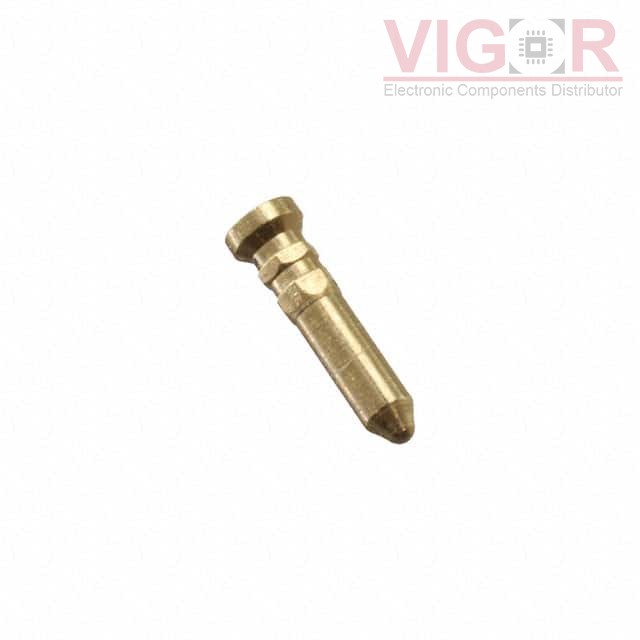

Image is for reference,
please contact us to get the real picture

Part No :: 8225-0-15-15-10-27-10-0

Manufacturer: Mill-Max

Description: PRESS-FIT RECEPTACLE FOR A PLATE

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: 8225-0-15-15-10-27-10-0 PDF

Availability: 1400 pieces

Unit Price: ~~$0.67000~~

Current price of 8225-0-15-15-10-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8225-0-15-15-10-27-10-0 Specifications

Type	Description
Series:	8225
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Press-Fit, Hex
Length - Overall:	0.190" (4.83mm)
Accepts Pin Diameter:	0.012" ~ 0.017" (0.30mm ~ 0.43mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	0.028" (0.71mm)
Mounting Hole Diameter:	0.042" (1.07mm)
Flange Diameter:	0.054" (1.37mm)
Tail Diameter:	-
Socket Depth:	0.155" (3.94mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
