0284-0-15-80-16-14-10-0

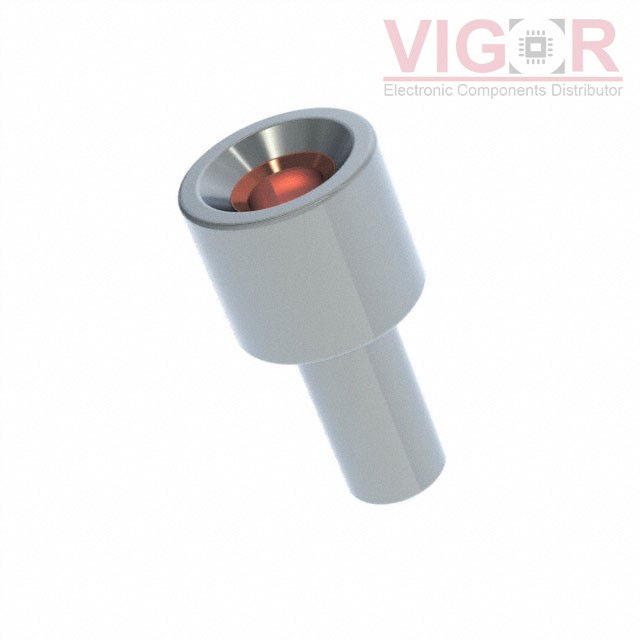

Image is for reference,
please contact us to get the real picture

Part No :: 0284-0-15-80-16-14-10-0

Manufacturer: Mill-Max

Description: CONN PIN RCPT

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: 0284-0-15-80-16-14-10-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.70320~~

Current price of 0284-0-15-80-16-14-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0284-0-15-80-16-14-10-0 Specifications

Type	Description
Series:	0284
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Solder
Length - Overall:	0.250" (6.35mm)
Accepts Pin Diameter:	0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size:	0.025" (0.64mm)
Pin Hole Diameter:	0.051" (1.30mm)
Mounting Hole Diameter:	0.070" (1.78mm)
Flange Diameter:	0.125" (3.18mm)
Tail Diameter:	-
Socket Depth:	0.210" (5.33mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
