5200-0-19-80-15-27-10-0

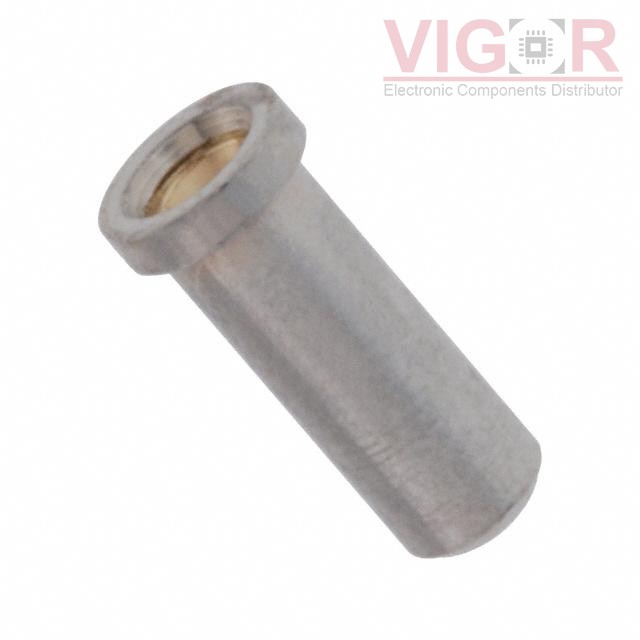

Image is for reference,
please contact us to get the real picture

Part No :: 5200-0-19-80-15-27-10-0

Manufacturer: Mill-Max

Description: CONN PIN RCPT

Catalog: Terminals - PC Pin Receptacles, Socket Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: 5200-0-19-80-15-27-10-0 PDF

Availability: 961 pieces

Unit Price: ~~$0.94000~~

Current price of 5200-0-19-80-15-27-10-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5200-0-19-80-15-27-10-0 Specifications

Type	Description
Series:	5200
Package:	Bulk
Part Status:	Active
Tail Type:	No Tail
Termination:	Surface Mount
Length - Overall:	0.180" (4.57mm)
Accepts Pin Diameter:	0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size:	-
Pin Hole Diameter:	0.047" (1.19mm)
Mounting Hole Diameter:	0.103" (2.62mm)
Flange Diameter:	0.093" (2.36mm)
Tail Diameter:	-
Socket Depth:	0.084" (2.13mm)
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
