11160

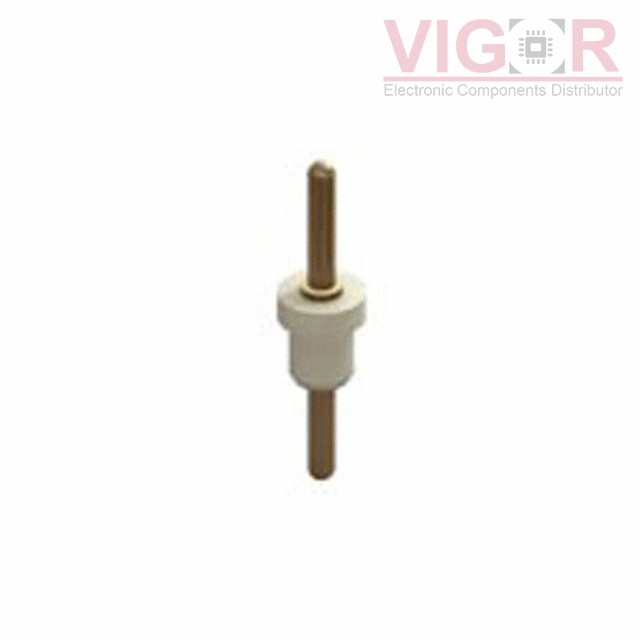

Image is for reference,
please contact us to get the real picture

Part No :: 11160

Manufacturer: Keystone Electronics Corp.

Description: CONN PC PIN CIRC 0.040DIA TIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: May 20 - May 24 2024

DataSheet: 11160 PDF

Availability: 214800 pieces

Unit Price: ~~$1.66000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 11160 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

11160 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	0.040" (1.02mm) Dia
Length - Above Flange:	0.210" (5.33mm)
Length - Below Flange:	0.380" (9.65mm)
Length - Overall:	0.630" (16.00mm)
Flange Diameter:	0.172" (4.37mm)
Mounting Hole Diameter:	0.136" (3.45mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Insulated
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass
Contact Finish:	Tin
Contact Finish Thickness:	-

Please confirm the specifications of the products when ordering.
