Type | Description |
---|---|
Series: | 6025 |
Package: | Bulk |
Part Status: | Active |
Terminal Type: | Single Post |
Terminal Style: | Flanged, Pin Retention |
Pin Size - Above Flange: | 0.040" (1.02mm) Dia |
Pin Size - Below Flange: | 0.067" (1.70mm) Hex |
Length - Above Flange: | 0.188" (4.78mm) |
Length - Below Flange: | 0.100" (2.54mm) |
Length - Overall: | 0.419" (10.64mm) |
Flange Diameter: | 0.093" (2.36mm) |
Mounting Hole Diameter: | 0.068" (1.73mm) |
Mounting Type: | Through Hole |
Termination: | Press-Fit |
Insulation: | Non-Insulated |
Board Thickness: | - |
Contact Material: | Brass Alloy |
Contact Finish: | Gold |
Contact Finish Thickness: | 10.0µin (0.25µm) |
SSR RELAY SPST-NO 400MA 0-60V

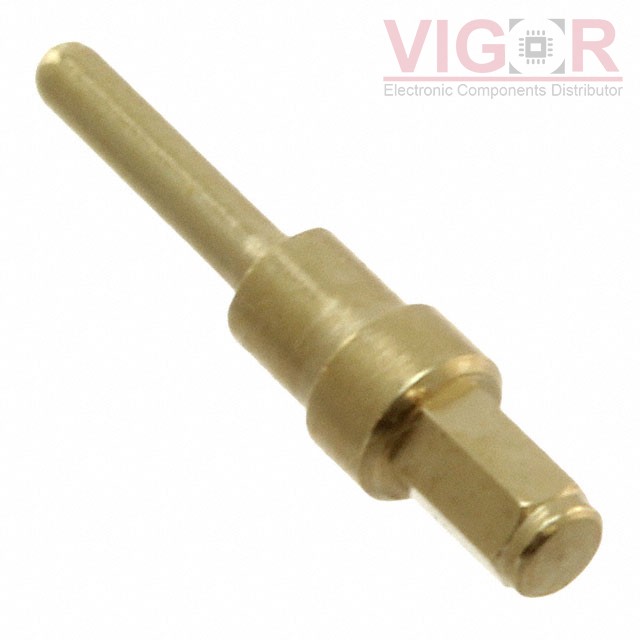

CONN SINGLE POST 0.040DIA GOLD
