0286-0-00-34-00-00-03-0

0286-0-00-34-00-00-03-0

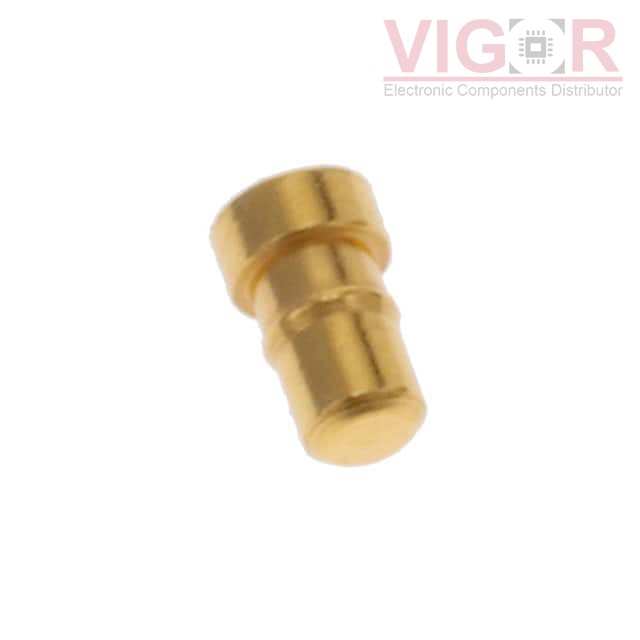

Image is for reference,
please contact us to get the real picture

Part No :

0286-0-00-34-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.053DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
0286-0-00-34-00-00-03-0 PDF
Availability
1000 pieces
Unit Price
$0.96000

Current price of 0286-0-00-34-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0286-0-00-34-00-00-03-0 Specifications
Type Description
Series:0286
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.053" (1.35mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.084" (2.13mm)
Length - Below Flange:-
Length - Overall:0.115" (2.92mm)
Flange Diameter:0.072" (1.83mm)
Mounting Hole Diameter:0.057" (1.45mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:50.0µin (1.27µm)
