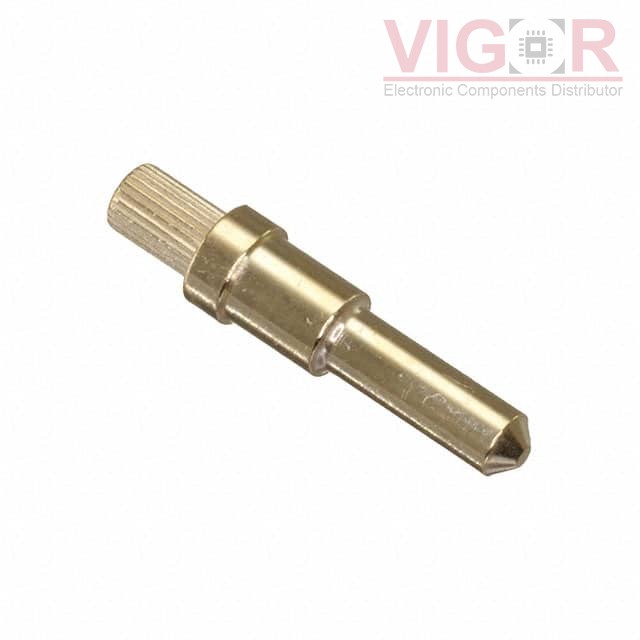

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 5344-0-00-15-00-00-03-0 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 5344 |
Package: | Bulk |
Part Status: | Active |
Terminal Type: | PC Pin |
Terminal Style: | Single End |
Pin Size - Above Flange: | 0.079" (2.01mm) Dia |
Pin Size - Below Flange: | 0.084" (2.13mm) Dia |
Length - Above Flange: | 0.420" (10.67mm) |
Length - Below Flange: | 0.075" (1.91mm) |
Length - Overall: | 0.545" (13.84mm) |
Flange Diameter: | 0.124" (3.15mm) |
Mounting Hole Diameter: | 0.082" (2.08mm) |
Mounting Type: | Through Hole |
Termination: | Press-Fit, Knurled |
Insulation: | Non-Insulated |
Board Thickness: | - |
Contact Material: | Brass Alloy |
Contact Finish: | Gold |
Contact Finish Thickness: | 10.0µin (0.25µm) |
