60803-1

60803-1

Image is for reference,
please contact us to get the real picture

Part No :

60803-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN PC PIN CIRC 0.058DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
60803-1 PDF
Availability
3002 pieces
Unit Price
$1.13000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 60803-1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

60803-1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Single Post
Terminal Style:Flanged
Pin Size - Above Flange:0.058" (1.47mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.160" (4.06mm)
Length - Below Flange:0.150" (3.81mm)
Length - Overall:0.375" (9.53mm)
Flange Diameter:0.090" (2.29mm)
Mounting Hole Diameter:0.046" ~ 0.050" (1.17mm ~ 1.27mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:0.062" ~ 0.093" (1.57mm ~ 2.36mm)
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1179-0-00-15-00-00-33-0

1179-0-00-15-00-00-33-0

CONN PC PIN CIRC 0.040DIA GOLD
HOT 09-8027-2-05

09-8027-2-05

NON-INSULATED PC PIN TERMINAL

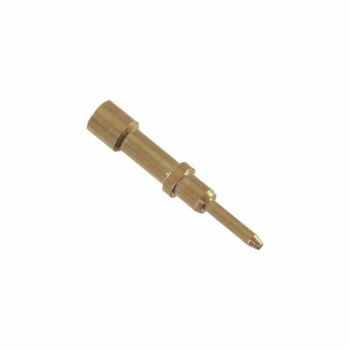

HOT 3603-0-07-15-00-00-08-0
