0508-0-00-15-00-00-03-0

0508-0-00-15-00-00-03-0

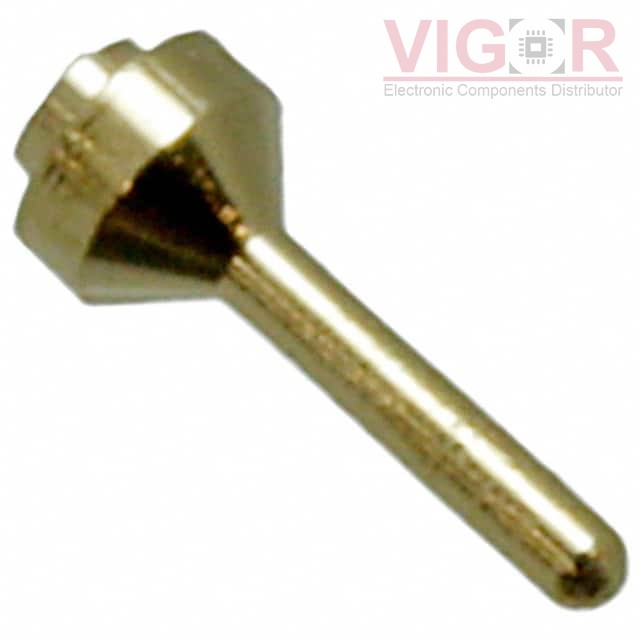

Image is for reference,
please contact us to get the real picture

Part No :

0508-0-00-15-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.020DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
0508-0-00-15-00-00-03-0 PDF
Availability
19475 pieces
Unit Price
$0.15000

Current price of 0508-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0508-0-00-15-00-00-03-0 Specifications
Type Description
Series:0508
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:-
Pin Size - Below Flange:0.020" (0.51mm) Dia
Length - Above Flange:0.125" (3.18mm)
Length - Below Flange:-
Length - Overall:0.155" (3.94mm)
Flange Diameter:0.058" (1.47mm)
Mounting Hole Diameter:-
Mounting Type:Surface Mount
Termination:Solder
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
