09-8181-1-05

09-8181-1-05

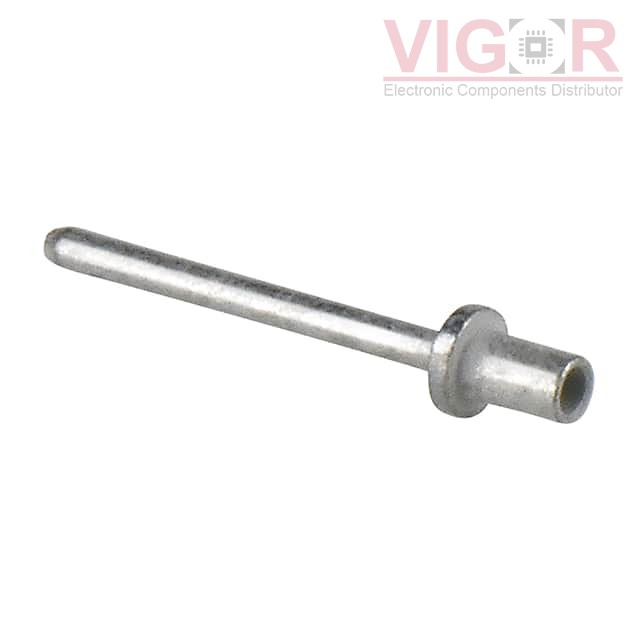

Image is for reference,
please contact us to get the real picture

Part No :

09-8181-1-05

Manufacturer
Concord Electronics
Description
NON-INSULATED PC PIN TERMINAL
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
09-8181-1-05 PDF
Availability
10000 pieces
Unit Price
$0.53400

Current price of 09-8181-1-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09-8181-1-05 Specifications
Type Description
Series:09-8181
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.020" (0.51mm) Dia
Pin Size - Below Flange:0.020" (0.51mm) Dia
Length - Above Flange:0.215" (5.46mm)
Length - Below Flange:0.084" (2.13mm)
Length - Overall:0.276" (7.01mm)
Flange Diameter:-
Mounting Hole Diameter:0.034" ~ 0.036" (0.86mm ~ 0.91mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.031" (0.79mm)
Contact Material:Brass
Contact Finish:Electro-Solder
Contact Finish Thickness:300.0µin (7.62µm)
