330-10-001-00-770800

330-10-001-00-770800

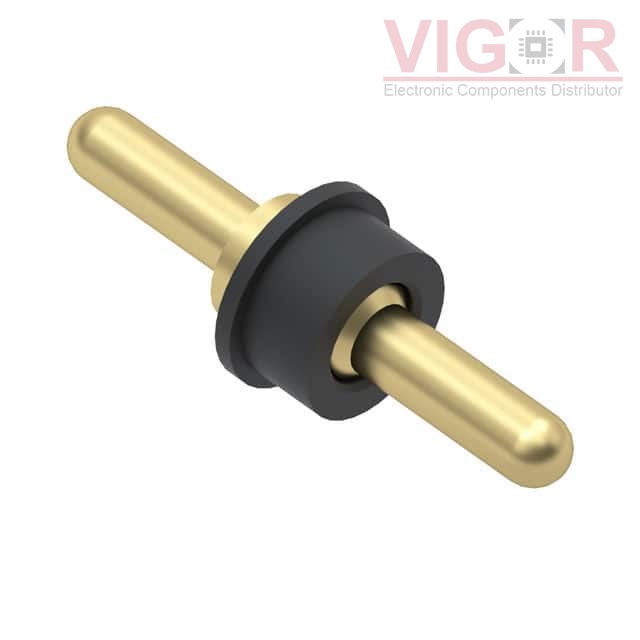

Image is for reference,
please contact us to get the real picture

Part No :

330-10-001-00-770800

Manufacturer
Mill-Max
Description
INSULATED TERMINAL PIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
330-10-001-00-770800 PDF
Availability
1382 pieces
Unit Price
$0.49000

Current price of 330-10-001-00-770800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

330-10-001-00-770800 Specifications
Type Description
Series:330
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Double End
Pin Size - Above Flange:0.040" (1.02mm) Dia
Pin Size - Below Flange:0.040" (1.02mm) Dia
Length - Above Flange:0.125" (3.18mm)
Length - Below Flange:0.125" (3.18mm)
Length - Overall:0.330" (8.38mm)
Flange Diameter:0.110" (2.79mm)
Mounting Hole Diameter:-
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
