9976-0-00-15-00-00-03-0

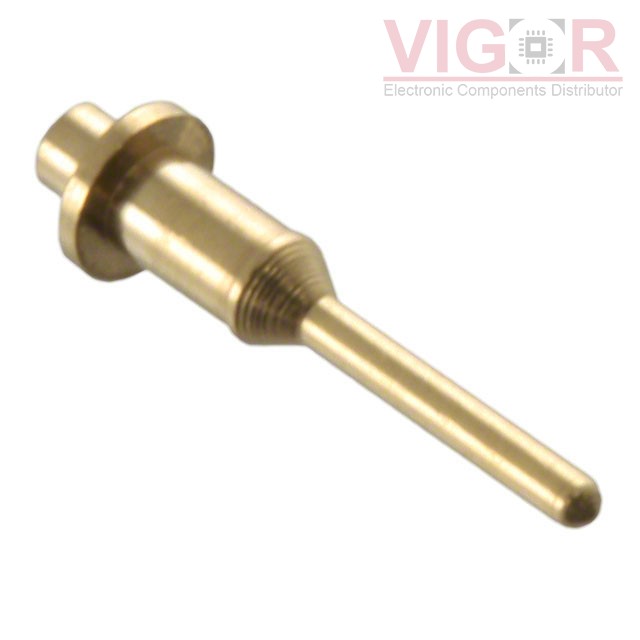

Image is for reference,
please contact us to get the real picture

Part No :

9976-0-00-15-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC 0.018DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
9976-0-00-15-00-00-03-0 PDF
Availability
1210 pieces
Unit Price
$0.73000

Current price of 9976-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:9976
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.018" (0.46mm) Dia
Pin Size - Below Flange:0.030" (0.76mm) Dia
Length - Above Flange:0.205" (5.21mm)
Length - Below Flange:-
Length - Overall:0.240" (6.10mm)
Flange Diameter:0.060" (1.52mm)
Mounting Hole Diameter:0.038" (0.97mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
