75401-001LF

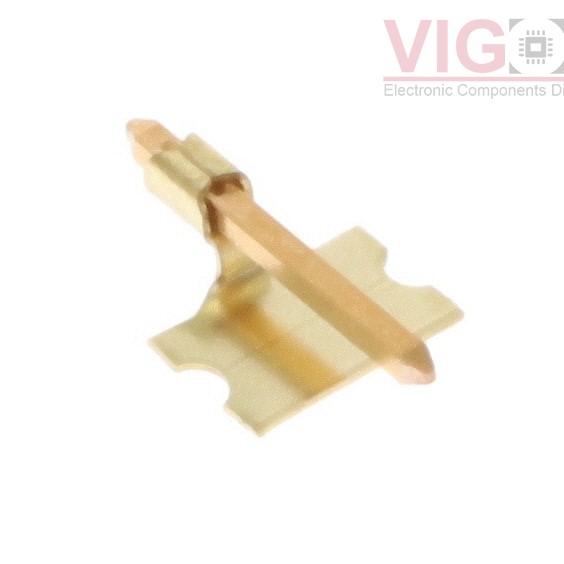

Image is for reference,
please contact us to get the real picture

Part No :: 75401-001LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN PC PIN SQUARE 0.025 GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: 75401-001LF PDF

Availability: 16245 pieces

Unit Price: ~~$0.49000~~

Current price of 75401-001LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

75401-001LF Specifications

Type	Description
Series:	Bergpin®
Package:	Bulk
Part Status:	Active
Terminal Type:	Single Post
Terminal Style:	Pin Retention
Pin Size - Above Flange:	0.025" (0.64mm) Square
Pin Size - Below Flange:	0.025" (0.64mm) Square
Length - Above Flange:	-
Length - Below Flange:	-
Length - Overall:	0.345" (8.76mm)
Flange Diameter:	-
Mounting Hole Diameter:	0.032" ~ 0.034" (0.81mm ~ 0.86mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	0.062" ~ 0.125" (1.57mm ~ 3.18mm)
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)

Please confirm the specifications of the products when ordering.
