1178-0-01-80-00-00-03-0

1178-0-01-80-00-00-03-0

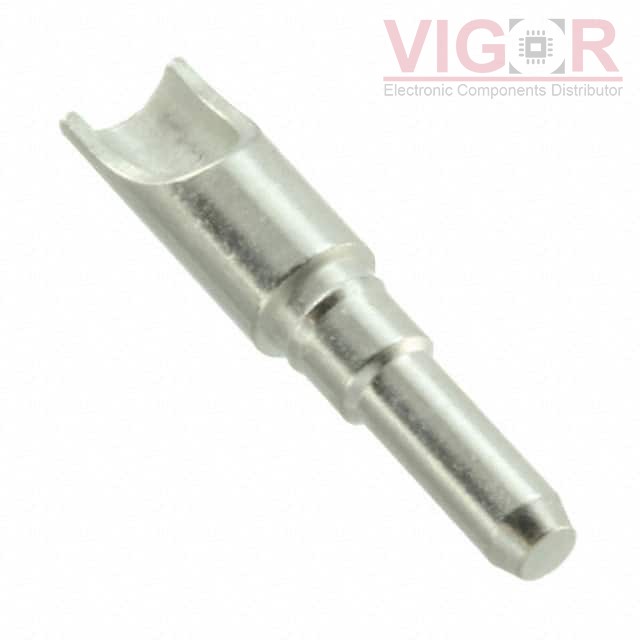

Image is for reference,
please contact us to get the real picture

Part No :

1178-0-01-80-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC .078DIA TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
1178-0-01-80-00-00-03-0 PDF
Availability
297 pieces
Unit Price
$0.37000

Current price of 1178-0-01-80-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1178-0-01-80-00-00-03-0 Specifications
Type Description
Series:1178
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Wire
Pin Size - Above Flange:0.078" (1.98mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.315" (8.00mm)
Length - Below Flange:-
Length - Overall:0.590" (14.99mm)
Flange Diameter:0.125" (3.18mm)
Mounting Hole Diameter:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:200.0µin (5.08µm)
