5130-0-00-15-00-00-03-0

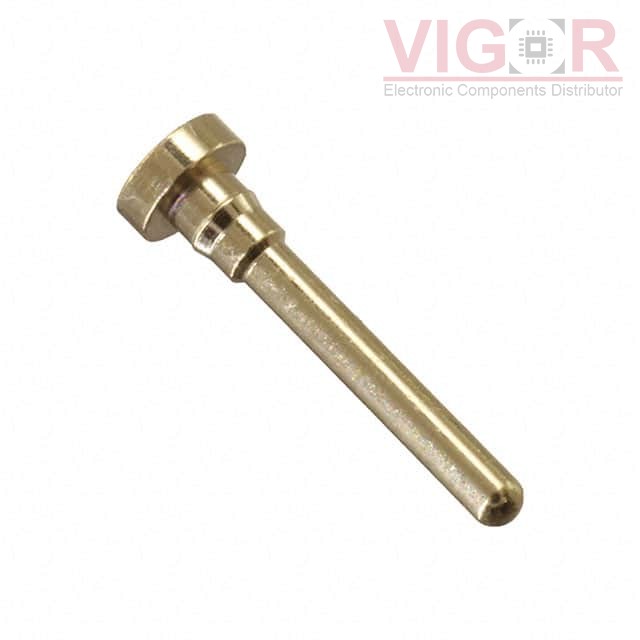

Image is for reference,
please contact us to get the real picture

Part No :: 5130-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: PRESS FIT NAIL HEAD PIN

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: 5130-0-00-15-00-00-03-0 PDF

Availability: 1991 pieces

Unit Price: ~~$0.61000~~

Current price of 5130-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5130-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	5130
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.330" (8.38mm)
Length - Below Flange:	-
Length - Overall:	0.360" (9.14mm)
Flange Diameter:	0.098" (2.49mm)
Mounting Hole Diameter:	0.056" (1.42mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
