3117-1-00-80-00-00-08-0

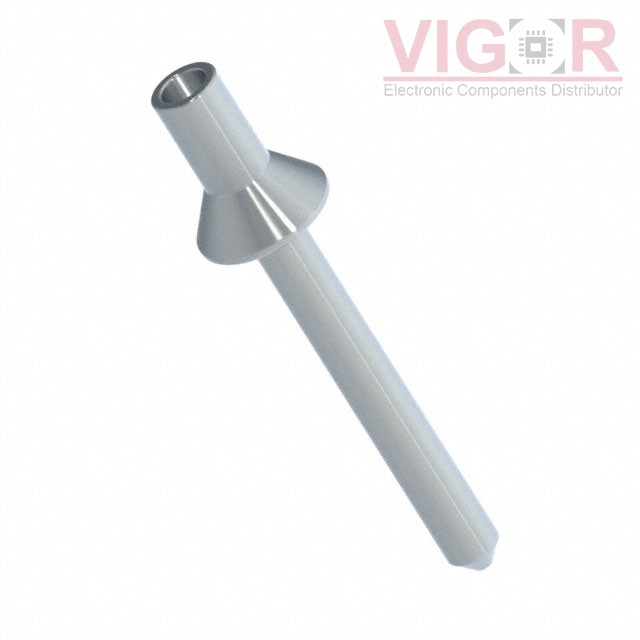

Image is for reference,
please contact us to get the real picture

Part No :: 3117-1-00-80-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: 3117-1-00-80-00-00-08-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.40000~~

Current price of 3117-1-00-80-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3117-1-00-80-00-00-08-0 Specifications

Type	Description
Series:	3117
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.024" (0.61mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.188" (4.78mm)
Length - Below Flange:	0.047" (1.19mm)
Length - Overall:	0.260" (6.60mm)
Flange Diameter:	0.060" (1.52mm)
Mounting Hole Diameter:	0.035" (0.89mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.031" (0.79mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)

Please confirm the specifications of the products when ordering.
