10-916-1-04

10-916-1-04

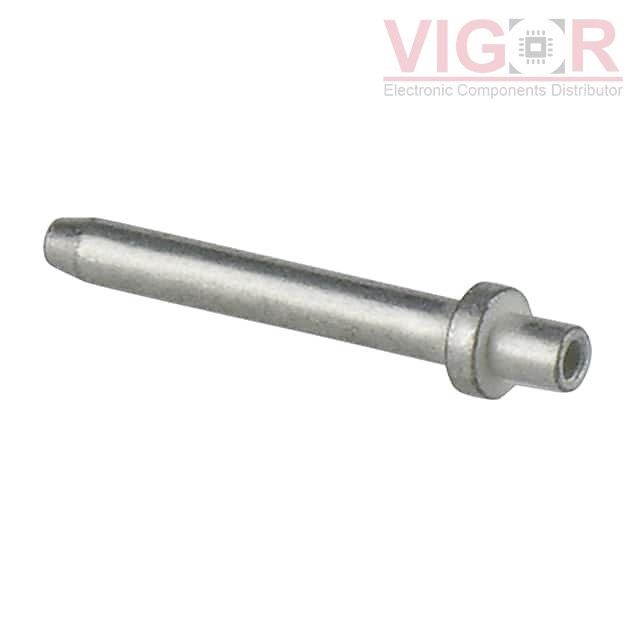

Image is for reference,
please contact us to get the real picture

Part No :

10-916-1-04

Manufacturer
Concord Electronics
Description
NON-INSULATED PC PIN TERMINAL
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
10-916-1-04 PDF
Availability
9450 pieces
Unit Price
$0.48000

Current price of 10-916-1-04 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10-916-1-04 Specifications
Type Description
Series:10-916
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.040" (1.02mm) Dia
Pin Size - Below Flange:0.040" (1.02mm) Dia
Length - Above Flange:0.040" (1.02mm)
Length - Below Flange:0.320" (8.13mm)
Length - Overall:0.371" (9.42mm)
Flange Diameter:0.070" (1.77mm)
Mounting Hole Diameter:0.042" ~ 0.044" (1.07mm ~ 1.12mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.031" (0.79mm)
Contact Material:Brass
Contact Finish:Electro-Tin
Contact Finish Thickness:300.0µin (7.62µm)
