9061-0-00-15-00-00-03-0

9061-0-00-15-00-00-03-0

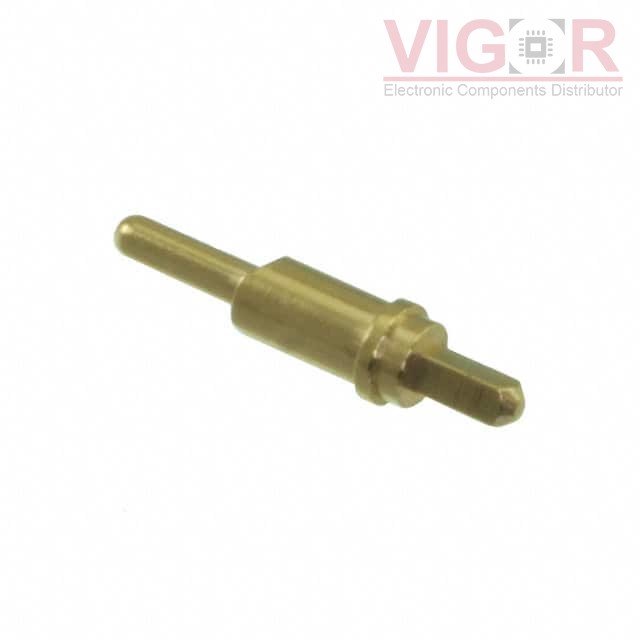

Image is for reference,
please contact us to get the real picture

Part No :

9061-0-00-15-00-00-03-0

Manufacturer
Mill-Max
Description
.422" VENTED PIN FOR PLATED THRO
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
9061-0-00-15-00-00-03-0 PDF
Availability
0 pieces
Unit Price
$0.41000

Current price of 9061-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9061-0-00-15-00-00-03-0 Specifications
Type Description
Series:9061
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Double End
Pin Size - Above Flange:0.049" (1.24mm) Square
Pin Size - Below Flange:0.040" (1.02mm) Dia
Length - Above Flange:0.100" (2.54mm)
Length - Below Flange:0.145" (3.68mm)
Length - Overall:0.422" (10.72mm)
Flange Diameter:0.095" (2.41mm)
Mounting Hole Diameter:0.051" (1.30mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
