3137-2-00-80-00-00-08-0

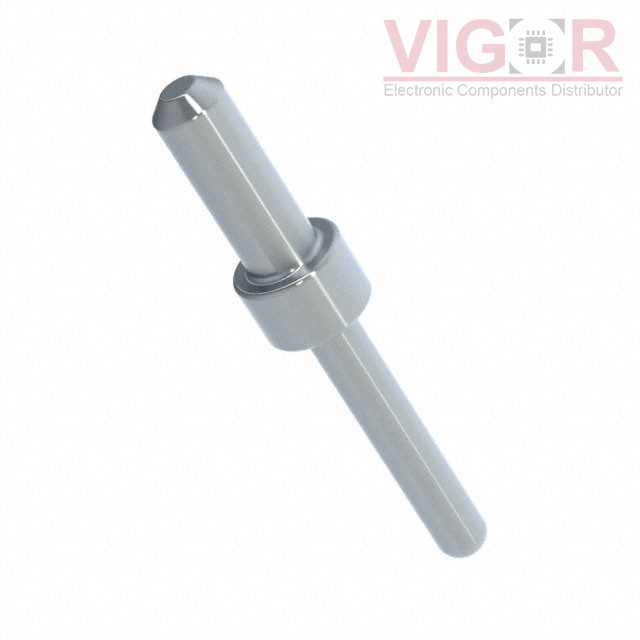

Image is for reference,
please contact us to get the real picture

Part No :: 3137-2-00-80-00-00-08-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: 3137-2-00-80-00-00-08-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.40000~~

Current price of 3137-2-00-80-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3137-2-00-80-00-00-08-0 Specifications

Type	Description
Series:	3137
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	0.030" (0.76mm) Dia
Length - Above Flange:	0.110" (2.79mm)
Length - Below Flange:	0.180" (4.57mm)
Length - Overall:	0.330" (8.38mm)
Flange Diameter:	0.062" (1.57mm)
Mounting Hole Diameter:	0.043" (1.09mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	0.062" (1.57mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	200.0µin (5.08µm)
