11159

11159

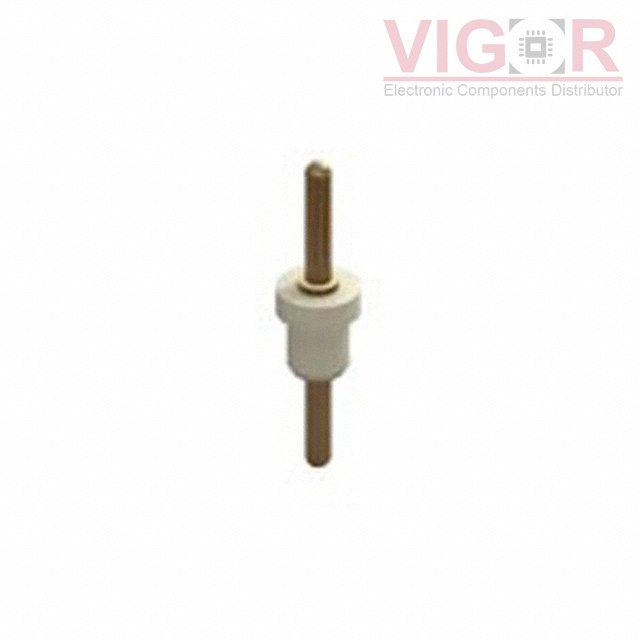

Image is for reference,
please contact us to get the real picture

Part No :

11159

Manufacturer
Keystone Electronics Corp.
Description
CONN PC PIN CIRC 0.040DIA TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
11159 PDF
Availability
155800 pieces
Unit Price
$1.53000

Current price of 11159 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

11159 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Double End
Pin Size - Above Flange:0.040" (1.02mm) Dia
Pin Size - Below Flange:0.040" (1.02mm) Dia
Length - Above Flange:0.210" (5.33mm)
Length - Below Flange:0.475" (12.07mm)
Length - Overall:0.725" (18.42mm)
Flange Diameter:0.172" (4.37mm)
Mounting Hole Diameter:0.136" (3.45mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Insulated
Board Thickness:0.062" (1.57mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
