8086-0-00-15-00-00-33-0

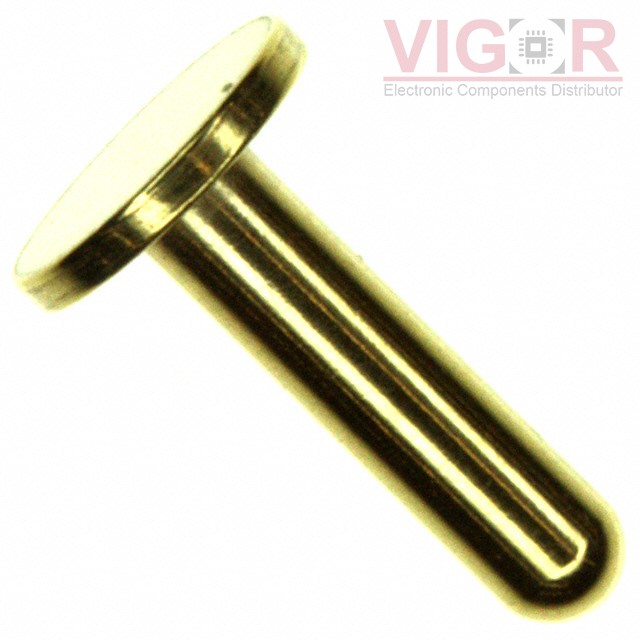

Image is for reference,
please contact us to get the real picture

Part No :: 8086-0-00-15-00-00-33-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.075DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: 8086-0-00-15-00-00-33-0 PDF

Availability: 156 pieces

Unit Price: ~~$0.94000~~

Current price of 8086-0-00-15-00-00-33-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8086-0-00-15-00-00-33-0 Specifications

Type	Description
Series:	8086
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End, Nail Head
Pin Size - Above Flange:	0.075" (1.91mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.300" (7.62mm)
Length - Below Flange:	-
Length - Overall:	0.325" (8.26mm)
Flange Diameter:	0.187" (4.75mm)
Mounting Hole Diameter:	0.079" (2.01mm)
Mounting Type:	Through Hole
Termination:	Solder
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)

Please confirm the specifications of the products when ordering.
