76-IMD22-250C

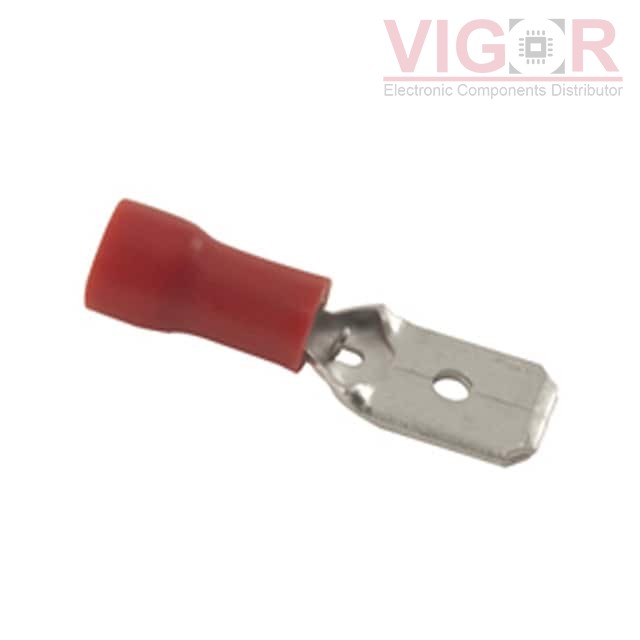

Image is for reference,
please contact us to get the real picture

Part No :: 76-IMD22-250C

Manufacturer: NTE Electronics, Inc.

Description: PVC INS MALE DISCON 22-18 100 BA

Catalog: Terminals - Quick Connects, Quick Disconnect Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: 76-IMD22-250C PDF

Availability: 11 pieces

Unit Price: ~~$5.35000~~

Current price of 76-IMD22-250C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

76-IMD22-250C Specifications

Type	Description
Series:	NEMA
Package:	Bag
Part Status:	Active
Terminal Type:	Standard
Gender:	Male
Tab Width:	0.250" (6.35mm)
Tab Thickness:	0.032" (0.81mm)
Tab Length:	0.307" (7.80mm)
Length - Overall:	0.835" (21.21mm)
Termination:	Crimp
Wire Gauge:	18-22 AWG
Insulation:	Non-Mating End Insulated
Mounting Type:	Free Hanging (In-Line)
Features:	-
Color:	Red
Contact Material:	Brass
Contact Finish:	Electro-Tin

Please confirm the specifications of the products when ordering.
