H2071ZS1

H2071ZS1

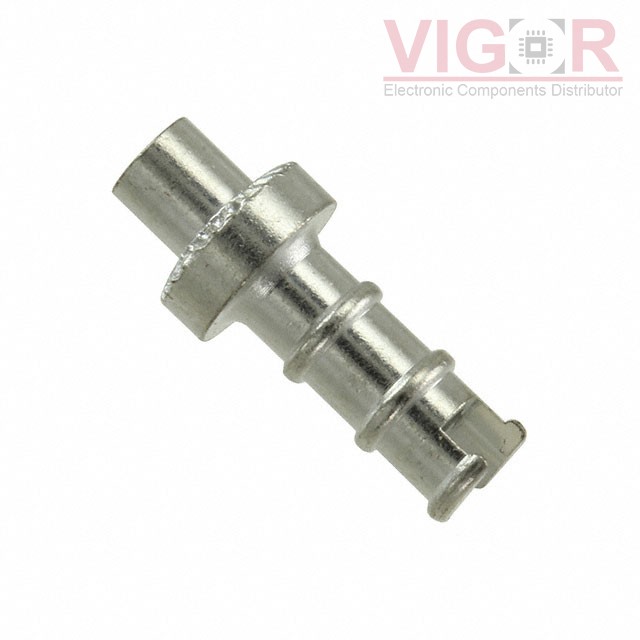

Image is for reference,
please contact us to get the real picture

Part No :

H2071ZS1

Manufacturer
Harwin
Description
TERM TURRET SLOTTED L=9.12MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 04 - May 08 2024
DataSheet
H2071ZS1 PDF
Availability
1439 pieces
Unit Price
$0.62000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of H2071ZS1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

H2071ZS1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Single End, Fork
Number of Turrets:Triple
Length - Above Board:0.359" (9.12mm)
Length - Below Flange:0.094" (2.39mm)
Length - Overall:0.453" (11.51mm)
Mounting Type:Through Hole
Termination:Swage
Flange Diameter:0.187" (4.75mm)
Diameter - Turret Head:0.125" (3.18mm)
Staking Side OD:0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID:0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter:0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness:0.063" (1.60mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
