H2055-01

H2055-01

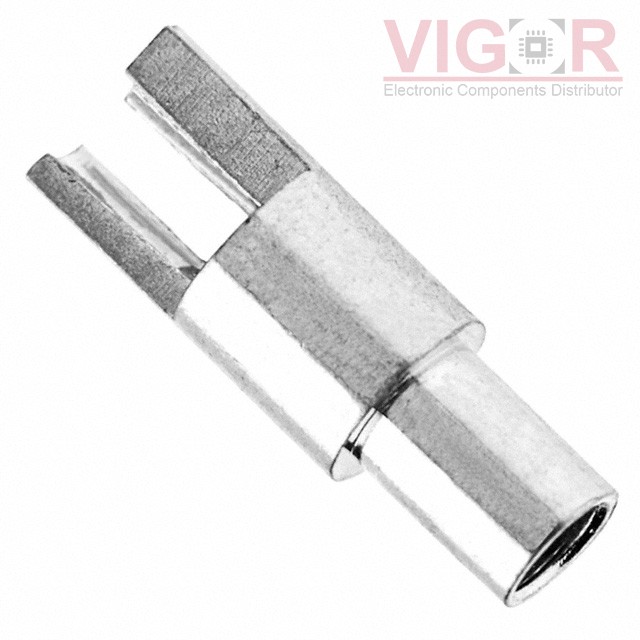

Image is for reference,
please contact us to get the real picture

Part No :

H2055-01

Manufacturer
Harwin
Description
TERM TURRET HOLLOW L=6.35MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2024
DataSheet
H2055-01 PDF
Availability
0 pieces
Unit Price
$0.44000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of H2055-01 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

H2055-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Single End, Fork, Hollow
Number of Turrets:Single
Length - Above Board:0.250" (6.35mm)
Length - Below Flange:0.125" ~ 0.130" (3.18mm ~ 3.30mm)
Length - Overall:0.375" (9.53mm)
Mounting Type:Through Hole
Termination:Swage
Flange Diameter:0.125" (3.18mm)
Diameter - Turret Head:-
Staking Side OD:0.091" ~ 0.094" (2.31mm ~ 2.39mm)
Staking Side ID:0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter:0.094" ~ 0.097" (2.39mm ~ 2.46mm)
Board Thickness:0.094" (2.39mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
