1545-3

1545-3

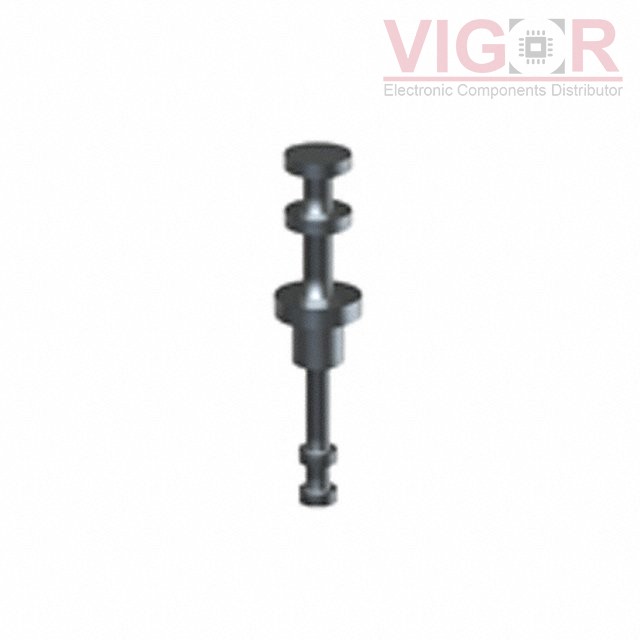

Image is for reference,
please contact us to get the real picture

Part No :

1545-3

Manufacturer
Keystone Electronics Corp.
Description
TERM TURRET DOUBLE L=9.14MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
1545-3 PDF
Availability
6500 pieces
Unit Price
$1.36000

Current price of 1545-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1545-3 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Double End
Number of Turrets:Double
Length - Above Board:0.360" (9.14mm)
Length - Below Flange:0.447" (11.35mm)
Length - Overall:0.807" (20.50mm)
Mounting Type:Through Hole
Termination:Staking Flare
Flange Diameter:0.187" (4.75mm)
Diameter - Turret Head:0.082" (2.08mm), 0.145" (3.68mm)
Staking Side OD:-
Staking Side ID:-
Mounting Hole Diameter:0.116" (2.95mm)
Board Thickness:0.093" (2.36mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
