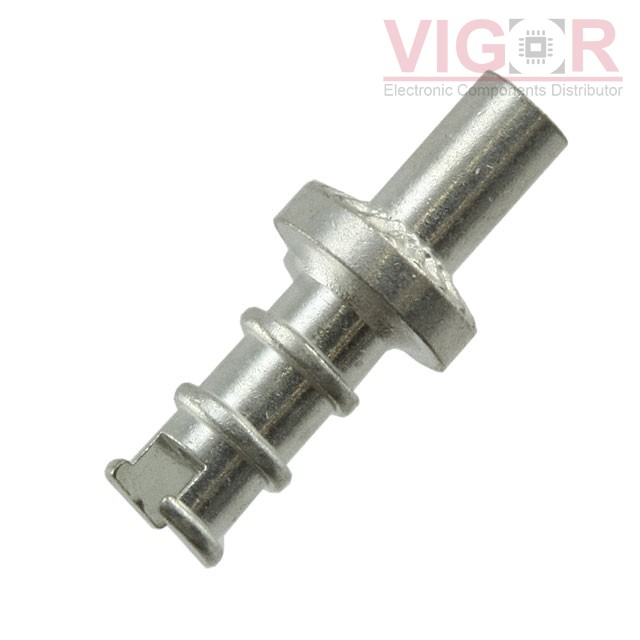

H2072ZL1

H2072ZL1

Image is for reference,
please contact us to get the real picture

Part No :

H2072ZL1

Manufacturer
Harwin
Description
TERM TURRET SLOTTED L=6.52MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
H2072ZL1 PDF
Availability
305 pieces
Unit Price
$0.61000

Current price of H2072ZL1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2072ZL1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Single End, Fork
Number of Turrets:Triple
Length - Above Board:0.257" (6.52mm)
Length - Below Flange:0.125" (3.18mm)
Length - Overall:0.382" (9.70mm)
Mounting Type:Through Hole
Termination:Swage
Flange Diameter:0.156" (3.96mm)
Diameter - Turret Head:0.100" (2.54mm)
Staking Side OD:0.074" ~ 0.079" (1.87mm ~ 2.01mm)
Staking Side ID:0.046" ~ 0.048" (1.17mm ~ 1.22mm)
Mounting Hole Diameter:0.079" ~ 0.083" (2.01mm ~ 2.11mm)
Board Thickness:0.094" (2.39mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
