1509-2

1509-2

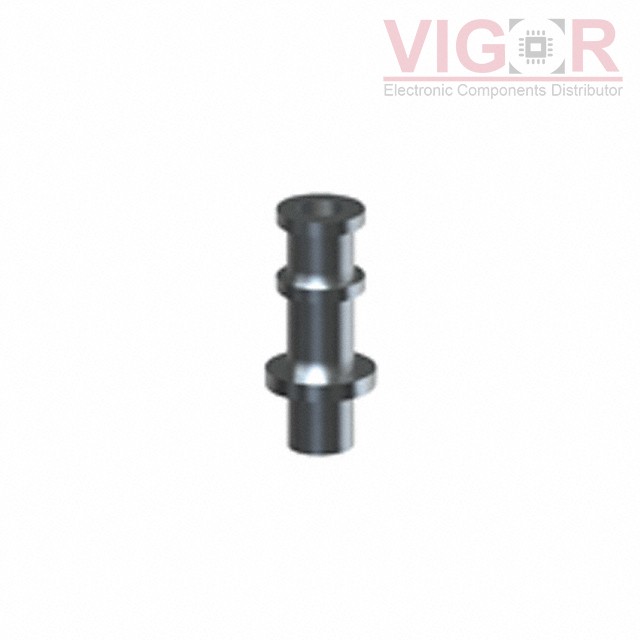

Image is for reference,
please contact us to get the real picture

Part No :

1509-2

Manufacturer
Keystone Electronics Corp.
Description
TERM TURRET HOLLOW L=7.92MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
1509-2 PDF
Availability
459918900 pieces
Unit Price
$0.69000

Current price of 1509-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1509-2 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Single End, Hollow
Number of Turrets:Double
Length - Above Board:0.312" (7.92mm)
Length - Below Flange:0.109" (2.77mm)
Length - Overall:0.421" (10.69mm)
Mounting Type:Through Hole
Termination:Staking Flare
Flange Diameter:0.187" (4.75mm)
Diameter - Turret Head:0.150" (3.81mm)
Staking Side OD:0.112" (2.84mm)
Staking Side ID:-
Mounting Hole Diameter:0.116" (2.95mm)
Board Thickness:0.062" (1.57mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
