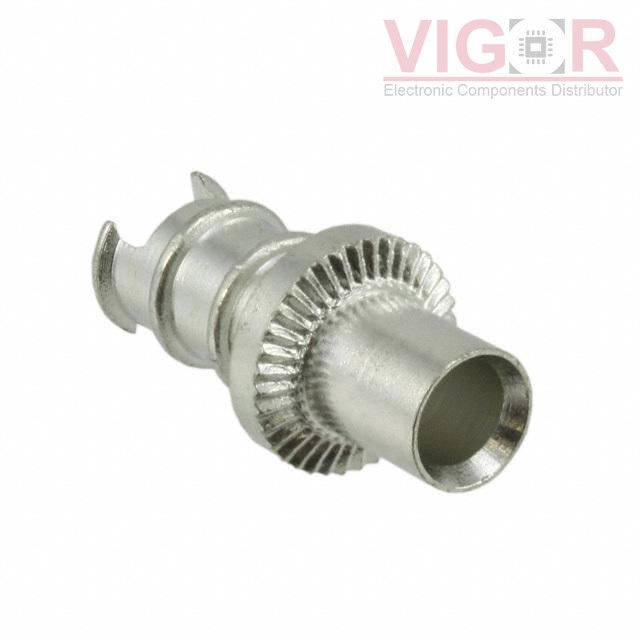

H2074Z01

Image is for reference,
please contact us to get the real picture

Part No :: H2074Z01

Manufacturer: Harwin

Description: TERM TURRET SLOTTED L=8.74MM TIN

Catalog: Terminals - Turret Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: H2074Z01 PDF

Availability: 0 pieces

Unit Price: ~~$0.64440~~

Current price of H2074Z01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2074Z01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork
Number of Turrets:	Triple
Length - Above Board:	0.344" (8.74mm)
Length - Below Flange:	0.171" (4.34mm)
Length - Overall:	0.515" (13.08mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.250" (6.35mm)
Diameter - Turret Head:	0.180" (4.57mm)
Staking Side OD:	0.152" ~ 0.154" (3.86mm ~ 3.92mm)
Staking Side ID:	0.109" ~ 0.112" (2.77mm ~ 2.85mm)
Mounting Hole Diameter:	0.155" ~ 0.159" (3.94mm ~ 4.04mm)
Board Thickness:	0.126" (3.20mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
